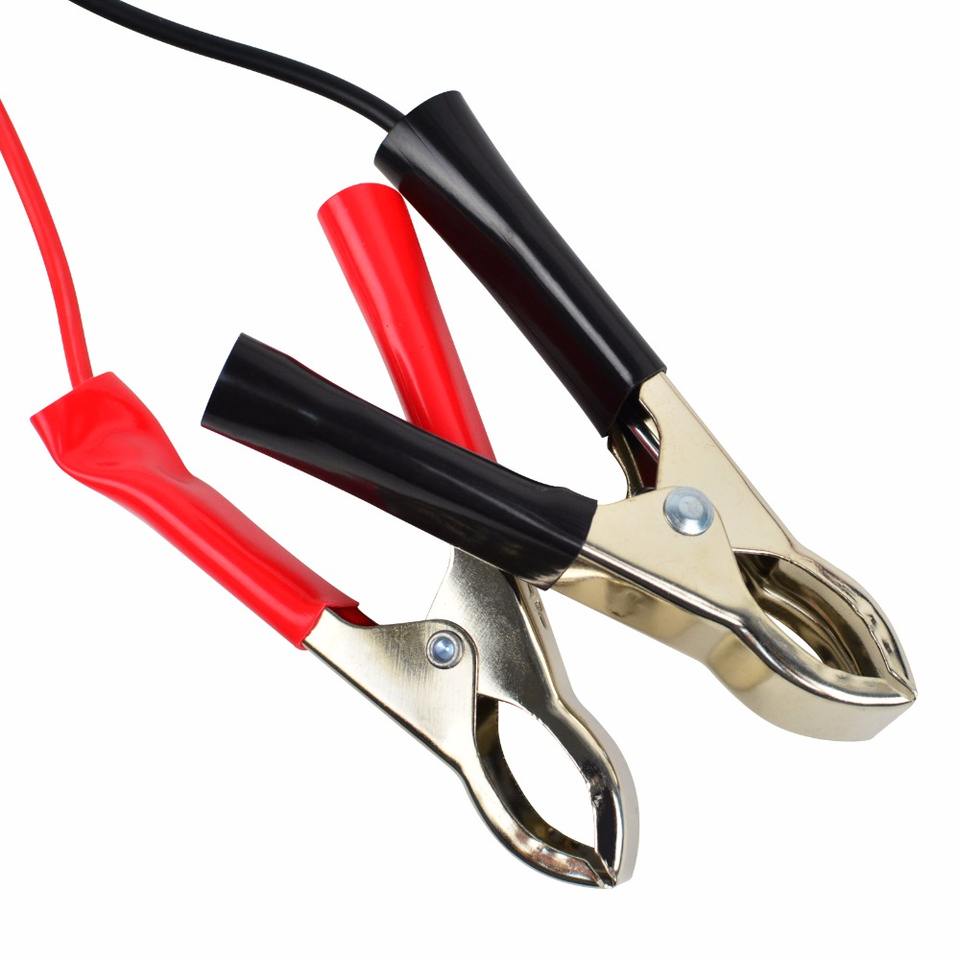

Connections (Black Clip)
Used to connect to the negative terminal of battery
Connections (Red Clip)
Used to connect to the positive terminal of battery
Connections (Pulse Output Terminal)
Used to connect to the injector to be tested
Power Supply
12V Vehicle Battery
Operation Environment
0 degree C~40 degree C, relative humidity <80%
Storage Environment
-10 degree C~50 degree C, relative humidity <85%
Size
147 x 82 x 29mm (for main body only)
